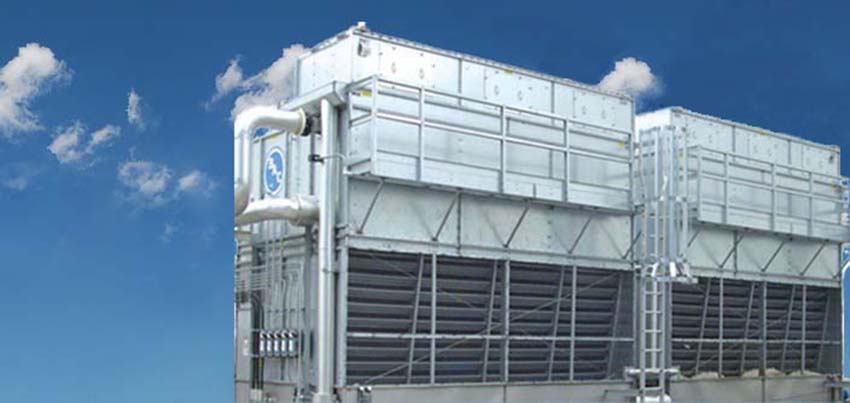

Closed Circuit Cooling Towers use a clean, closed loop, in a highly efficient evaporative heat transfer process.

Pritchard Factory Assembled Closed Circuit Coolers

BAC Factory Assembled

Closed Circuit Coolers

Principle Operation

Closed circuit cooling towers operate in a manner similar to open cooling towers, except that the heat load to be rejected is transfered from the process fluid (the fluid being cooled) to the ambient air through a heat exchange coil. The coil serves to isolate the process fluid from the outside air, keeping it clean and contaminate free in a closed loop. This creates two separate fluid circuits:

  1.  an external circuit in which a small amount of spray water circulates over the coil and mixes with the outside air.
  2. an internal circuit in which the process fluid circulates inside the coil.

During operation, heat is transferred from the internal circuit, through the coil to the spray water, and then to the atmosphere as a portion of the water evaporates.

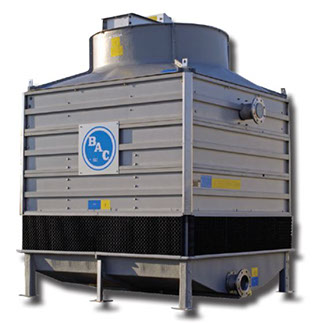

RCF Series

Counterflow Closed Circuit Cooler

RCF Closed Circuit Cooling Towers deliver fully rated thermal performance over a wide range of flow and temperature requirements. The RCF shares the superior and unrivaled features found in the popular PCT range of cooling towers. The Pultruded Composite structure employs the same patented bonded panel to post connection adding rigidity to the structure resulting in superior strength far exceeding that acheived in conventional bolt jointed FRP panels.

Product Specifications

Key Features



Low total Installation costs

Low sound

Low height

Superior pultruded composite construction

Superior maintenance and cleaning protocols



Capacity range

Single Cell Capacity

from 1 to 100 l/s

Fan Type

Axial Fan

Induced Draft

Typical Applications

Small to medium industrial applications.



Pritchard RCF Closed Circuit Cooling Towers

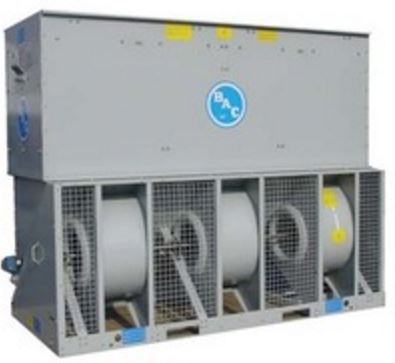

VXI Series

Counterflow Closed Circuit Cooler

VXI Closed Circuit Cooling Towers deliver fully rated thermal performance over a wide range of flow and temperature requirements. The VXI can be installed indoors. Its design minimises sound levels and installation costs, provides year-round operating reliability and simplifies maintenance requirements.

Product Specifications

Key Features



Suitable for indoor and outdoor installations

Suitable for high temperature applications

Low sound

Single side air inlet

Low installed cost

Easy maintenance

Reliable year-round operation

Long service life

Capacity range

Single Cell Capacity

from 1 to 200 l/s

Fan Type

Centrifugal Fan

Forced Draft

Maximum Entering Fluid Temperature

82oC

Typical Applications

Small to medium HVAC and industrial applications such as water source heat pump loops, generator and air compressor cooling.

Indoor installations

High temperature applications

Tight enclosures and installations requiring a single air inlet.

Extremely sound sensitive.

Pritchard VXI Closed Circuit Cooling Towers

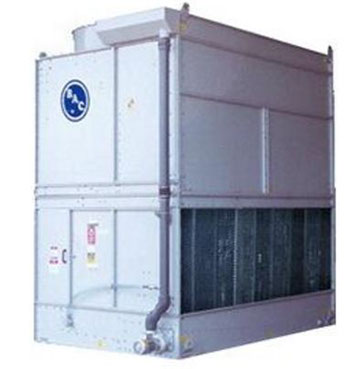

FXVB Series

Combined flow Closed Circuit Cooler

FXV Closed Circuit Cooling Towers deliver fully rated thermal performance over a wide range of flow and temperature requirements. Standard design features satisfy today's environmental concerns, minimise installation costs, maximise year-round operating reliability and simplify maintenance requirements.

Product Specifications

Key Features



Low energy consumption

Single side air inlet

Low installed cost

Easy maintenance

Reliable year-round operation

Long service life

Application flexibility

Capacity range

Single Cell Capacity

from 1 to 200 l/s

Fan Type

Centrifugal Fan

Forced Draft

Maximum Entering Fluid Temperature

82oC

Typical Applications

Small to medium HVAC and industrial applications such as water source heat pump loops and air compressor cooling.

Indoor installations

High temperature applications

Tight enclosures and installations requiring a single air inlet.

Extremely sound sensitive.

Pritchard FXV Combined flow Closed Circuit Cooling Towers

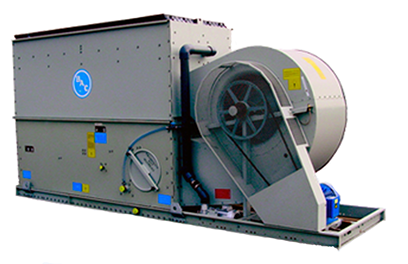

VFL Series

Counterflow Closed Circuit Cooler

VFL Closed Circuit Cooling Towers deliver fully rated thermal performance over a wide range of flow and temperature requirements. The VFL can be installed indoors and minimise sound levels, and are available to accommodate limited ceiling or enclosure heights. The VFL design minimises installation costs, provides year-round operating reliability, and simplifies maintenance requirements.

Product Specifications

Key Features



Suitable for indoor and outdoor installations

Suitable for high temperature applications

Suitable for locations with limited ceiling r enclosure heights and roof top installations

Low sound

Single side air inlet

Low installed costs

Easy maintenance

Reliable year-round operation

Long service life

Capacity range

Single Cell Capacity

from 1 to 200 l/s

Fan Type

Centrifugal Fan

Forced Draft

Maximum Entering Fluid Temperature

82oC

Typical Applications

Small to medium HVAC and industrial applications.

Tight enclosures and installations requiring a single air inlet.

Low height and indoor installations

High temperature industrial applications

Dry operation in winter time.

Sound critical installations.

Pritchard Couterflow closed circiut cooler
