Pritchard Factory Assembled Cooling Towers. Counterflow and crossflow series

BAC Factory Assembled

Cooling Towers

Cooling Towers use an environmentally friendly cooling process, resulting in a proven, efficient and cost-effective method of cooling condenser water loops and industrial processes.

Principle Operation

Cooling towers reject heat from water-cooled systems to the atmosphere. Hot water from the system enters the cooling tower and is distributed over the fill (heat transfer surface). Air is induced or forced through the fill, causing a small portion of water to evaporate. This evaporation removes heat from the remaining water, which is collected in the cold water basin and returned to the system to absorb more heat. Each cooling tower line, although operating under the same basic principle of operation is arranged a little differently.

Thermal performance certified by the Cooling Technology Institute in accordance with CTI STD-201

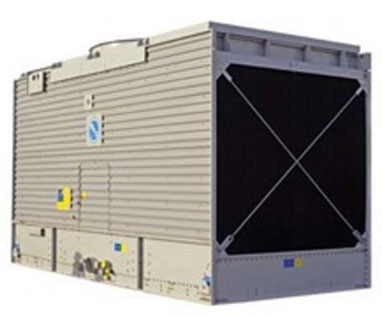

S3000 Series

Crossflow Cooling Tower

Series 3000 Cooling Towers deliver fully rated thermal performance over a wide range of flow and temperature requirements. Standard design features satisfy today's environmental concerns, minimise installation costs, maxmise year-round operating reliability, and simplify maintenance requirements.

Product Specifications

Key Features



Low energy consumption

Low installed cost

Easy maintenance

Reliable year-round operation

Long service life

Easy removable high efficiency fill

Cold water basin is to be free draining



Capacity range

Single Cell Capacity

from 40 to 260 l/s

Fan Type

Axial Fan

Induced Draft

Maximum Entering Fluid Temperature

50oC standard wet deck

55oC alternative wet deck material

Typical Applications

Medium to large HVAC & industrial applications.

Replacement of timber field erected towers

Pritchard Crossflow Cooling Tower

PCT Series

Counterflow Cooling Tower

PCT Series Cooling Towers provide demanding Commercial and Industrial applications with reliable,cost effective energy efficient solutions. With a focus on operational reliability and ease of maintenance, the PCT Series is easy to inspect, clean & maintain thanks to built-in design features. In facing the unique challenges of industrial applications the PCT reduces the cost plant design, construction, operation and on-going maintenance, whilst improving the standard of quality and construction.

Product Specifications

Key Features



Low total installation costs

Low sound

Low energy consumption

Low height

Superior pultruded composite Construction

Superior maintenance and cleaning protocols



Capacity range

Single Cell Capacity

from 10 to 145 l/s

Fan Type

Axial Fan

Induced Draft

Maximum Entering Fluid Temperature

55oC standard wet deck

65oC alternative wet deck material

Typical Applications

Small to medium industrial applications.

Dirty water applications

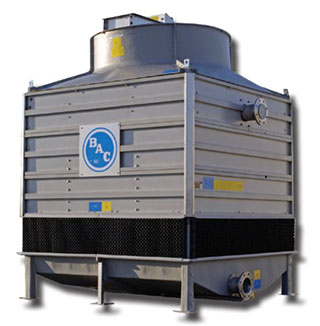

PCT Series Counterflow Cooling Tower

VT1 Series

Counterflow Cooling Tower

VT1 Open Circuit Cooling Towers with centrifugal fans,deliver fully rated thermal performance over a wide range of flow and temperature requirements. The VT1 can be installed indoors and can accommodate limited ceilings or enclosure heights, minimise sound levels and installation costs, provide year round operating reliability and simplify maintenance requirements.

Product Specifications

Key Features



Suitable for indoor and outdoor installations

Suitable for high temperature applications

Low sound

Single side or bottom air inlet

Low energy consumption

Low installed cost

Easy maintenance with fans on dry entering air side

Reliable year-round operation

Long service life

Capacity range

Single Cell Capacity

from 1.6 to 1230 l/s

Fan Type

Centrifugal Fan

Forced Draft

Maximum Entering Fluid Temperature

55oC standard wet deck

65oC alternative wet deck material

Typical Applications

Small to medium HVAC and industrial applications.

Indoor installations

High temperature industrial applications

Tight enclosures and installations requiring a single or bottom air inlet

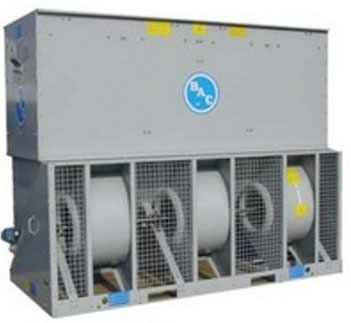

Pritchard CVT1 Series Counterflow Cooling Tower

VTL Series

Counterflow Cooling Tower

VTL Open Circuit Cooling Towers with centrifugal fans, deliver fully rated thermal performance over a wide range of flow and temperature requirements. The VTL can be installed indoors and can accommodate limited ceiling or enclosure heights, minimsed sound levels and installation costs, provide year round operating reliability, and simplify maintenance requirements.

Product Specifications

Key Features



Suitable for indoor and outdoor installations

Suitable for high temperature applications

Low Sound

Single side air inlet

Low installed costs

Easy maintenance

Reliable year-round operation

Long service life

Suitable for locations with limited ceiling or enclosure heights and roof top installations

Capacity range

Single Cell Capacity

from 10 to 90 l/s

Fan Type

Centriugal Fan

Forced Draft

Maximum Entering Fluid Temperature

55oC standard wet deck

60oC alternative wet deck material

Typical Applications

Small to medium HVAC and industrial applications.

Extremely low height, tight enclosure indoor or high temperature applications.

Installations requiring a single air inlet.

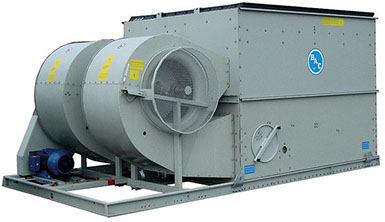

Pritchard VTL Series Counterflow Cooling Tower
