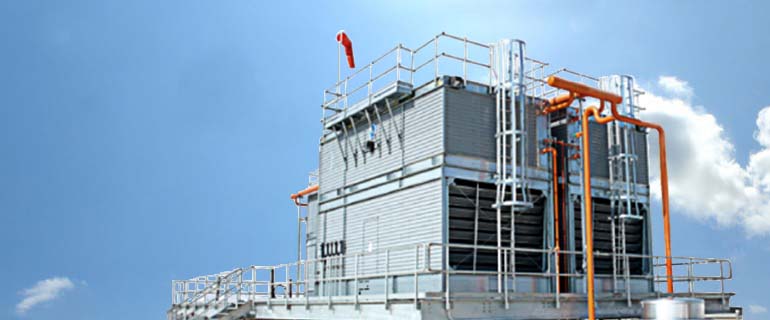

Pritchard Evaporative Condensers

Evaporative Condensers offer energy savings by providing lower system condensing temperatures than conventional air-cooled or water-cooled condensing systems.

BAC Factory Assembled

Evaporative Condensers

Principle Operation

Evaporative condensers provide heat rejection for many types of systems, and the specific application will largely determine which BAC Evaporative Condenser is best suited for a project. The information contained within this section is geared towards the use of evaporative condensers in HVAC and industrial refrigeration markets only. Evaporative condensers are used in these markets to provide lower condensing temperatures and compressor horsepower savings of up to 15 percent when compared to traditional systems.

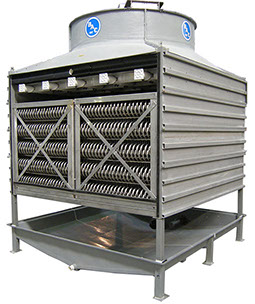

RCC Series

Counterflow Evaporative Condenser

RCC Evaporative Condensers deliver fully rated thermal performance over a wide range of flow and temperature requirements. The RCC shares the superior and unrivaled features found in the popular PCT range of cooling towers. The Pultruded Composite structure employs the same patented bonded panel to post connection adding rigidity to the structure resulting in superior strength far exceeding that achieved in conventional bolt jointed FRP panels.

Product Specifications

Key Features

Lower total Installation costs

Low sound

Low height

Superior pultruded composite construction

Superior maintenance and cleaning protocols



Capacity range

Single Cell Capacity

from to 2700 kW

Fan Type

Axial Fan

Induced Draft

Typical Applications

Small to medium industrial applications



Pritchard RCC Evaporative Condensers

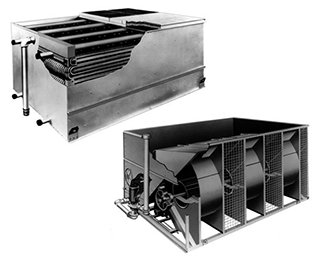

VXC Series

Counterflow Evaporative Condensers

VXC Evaporative Condensers deliver fully rated thermal performance over a wide range of heat rejection and temperature requirements for various refrigerants. VXC models can be installed indoors and minimise sound levels. The VXC occupies minimum floor space, provides year-round operating reliability and is ideal for sound sensitive applications

Product Specifications

Key Features

Suitable for indoor and outdoor installations

Low sound

Single side air inlet

Low energy consumption

Low installed cost

Easy maintenance

Reliable year-round operation

Long service life

Wide capacity range

Capacity range

Single Cell Capacity

from 60 kW to 693 kW

Fan Type

Centrifugal Fan

Forced Draft

Typical Applications

Sound sensitive industrial refrigeration projects.

Installations with limited plan area

Indoor installations





Pritchard VXC Evaporative Condensers

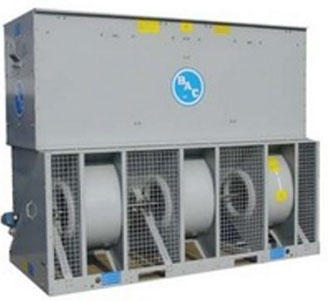

VCIC Series

Containerised Evaporative Condensers

Each VCIC unit has been designed to ship in a standard 40ft general purpose container. This eliminates the extra cost for crating and the need to transport on a flat rack container. The fully containerised shipment ensures that transport damage is almost eliminated. This has been achieved by the innovative use of a fan housing closure panel which is field installed. The benefit of this approach is to enable BAC to ship units of higher capacity in containers to any location.

Product Specifications

Key Features

Containerised for easy transport

Low sound

Single side air inlet

Low energy consumption

Low installed cost

Easy maintenance

Reliable year-round operation



Capacity range

Single Cell Capacity

from 950 kW to 2000 kW

Fan Type

Centrifugal Fan

Forced Draft

Typical Applications

Sound sensitive industrial refrigeration projects.

Installations with limited plan area

Indoor installations





Pritchard VICI Containerised Evaporative Condensers

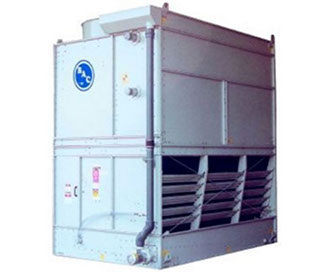

CXVB Series

Combinedflow Evaporative Condenser

CXV Evaporative Condensers deliver fully rated thermal performance over a wide range of heat rejection and temperature requirements for various refrigerants. Standard design features directly address today's environmental concerns by minimizing installation costs, provides year-round operating reliability, and simplifies maintenance requirements.

Product Specifications

Key Features

Low energy consumption

Easy maintenance

Reduced refrigeration charge

Low installed costs

Application flexibility

Reliable year-round operation

Long service life

Capacity range

Single Cell Capacity

from 300 kW to 2100 kW

Fan Type

Axial Fan

Forced Draft

Typical Applications

Industrial refrigeration applications

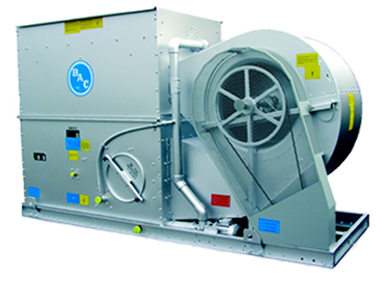

VCL Series

Counterflow Evaporative Condenser

VCL Evaporative Condensers deliver fully rated thermal performance over a wide range of heat rejection and temperature requirements for various refrigerants. VCL models can be installed indoors, minimises sound levels, and are available to accommodate limited ceiling or enclosure heights. The series VL minimises installation costs, provides year-round operating reliability, and is ideal for sound sensitive applications.

Product Specifications

Key Features

Suitable for indoor and outdoor installations

Suitable for locations with limited ceiling or enclosure heights

Suitable for rooftop installations

Single side air inlet

Low sound

Low height

Low installed costs

Easy maintenance

Reliable year-round operation

Long service life

Capacity range

Single Cell Capacity

from 180 kW to 1380kW

Fan Type

Centrifugal Fan

Forced Draft

Typical Applications

Sound sensitive industrial refrigeration and HVAC projects.

Installations with extremely low height requirements.

Indoor installations.

Skid packages.
