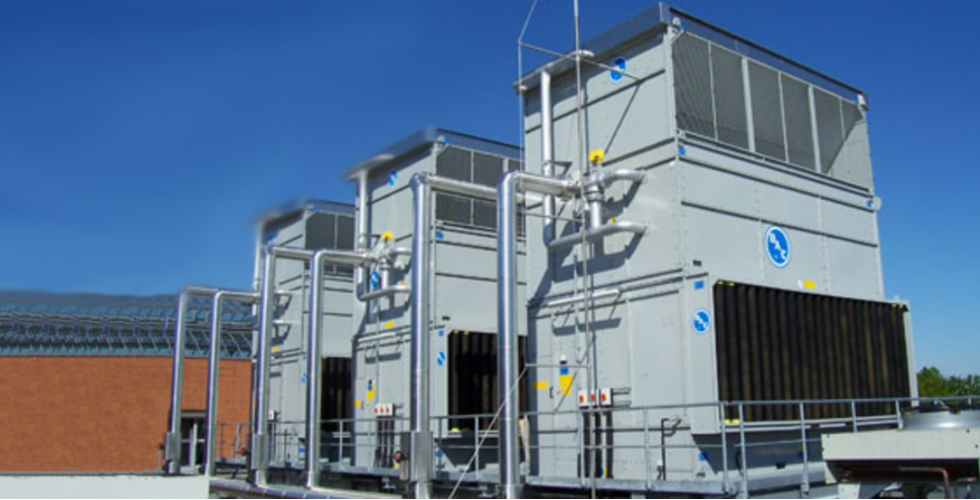

Water Saving Hybrid combine the best of both worlds i.e. wet and dry cooling into a single compact and cost-effective unit. These products combine two or more heat transfer surfaces into one unit optimising the use of the ambient dry and wet bulb temperatures.

Principle Operation

Water saving hybrid products are the closed circuit type where the heat load to be rejected is transferred from the process to the ambient air through a heat exchange coil. The coil serves to isolate the process fluid from the outside air, keeping it clean and contamination free in a closed loop providing a longer and relatively maintenance free system life.

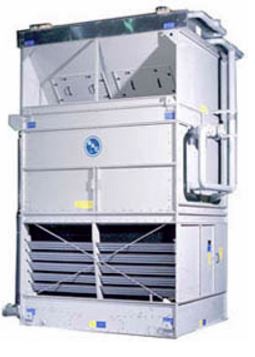

HXI Series - Combined flow water saving device



HXI Closed Circuit Hybrid Cooling Towers deliver fully rated thermal performance over a wide range of flow and temperature requirements. Distinct advantages of the HXI include plume abatement and significant water saving over traditional water-cooled equipment. Standard design features satisfy today's environmental concerns, minimise installation costs, maximise year-round operating reliability, and simplify maintenance requirements providing a longer system life

Product Specifications

Key Features



Plume abatement

Maximum water savings

Low energy consumption

Low installed cost

Easy maintenance

Reliable year-round operation

Long service life



Capacity range

Single Cell Capacity

 to 150 l/s

Fan Type

Axial Fan

Induced Draft

Maximum Entering Fluid Temperature

82oC

Typical Applications

Medium to large HVAC & industrial applications.

Installations requiring plume abatement.

Installation requiring water conservation.

Low energy consumption

Easy maintenance



HXI Series

Combined flow Water Saving Device

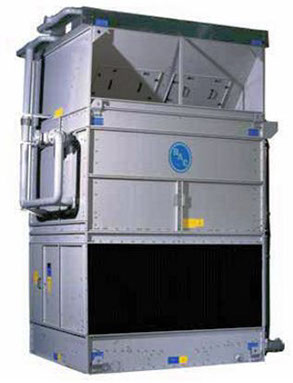

HXC Series

Combined Flow Water Saving Device



The HXC Hybrid Condenser offers significant water savings versus traditional water-cooled and evaporative condensers. Thanks to the standard design features the HXC satisfies additional environmental concerns by minimising  energy consumption, refrigerant charge and plume. The HXC minimises operating costs, provides year-round operating reliability and simplifies maintenance requirements.

Product Specifications

Key Features



Maximum water savings

Low energy consumption

Low refrigerant charge

Low installed cost

Easy maintenance

Plume abatement

Reliable year-round operation

Long service life



Capacity range

Single Cell Capacity

 to 2060kW

Fan Type

Axial Fan

Induced Draft

Maximum Entering Fluid Temperature

82oC

Typical Applications

Industrial refrigerant application in geographical regions where water cost  is high



Pritchard HXC Hybrid Condenser
