Spare Parts

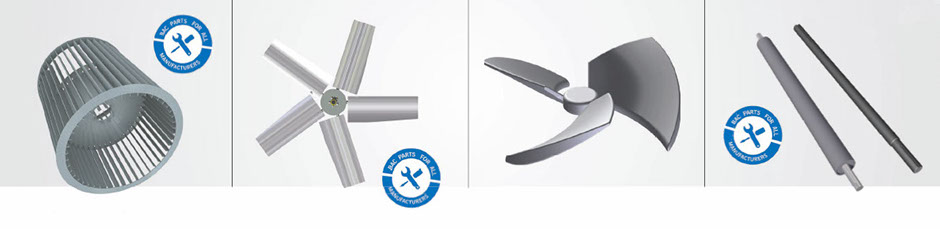

• Centrifugal fans have inherently low sound characteristics
• Available in multiple materials of construction to meet various operating conditions
• Engineered, manufactured, and rated by BAC for optimum performance
• Maintain thermal performance as originally certified by CTI
• Complete installation kit includes hardware, adhesive, and clamps

• Ultimate low sound solution
• Available for Series 3000, 1500, PT2, Single Air Inlet FXV, and CXVB units
• Reduces sound levels generated from the unit with minimal impact on thermal performance

• Specially selected tubing materials ensure strength and durability

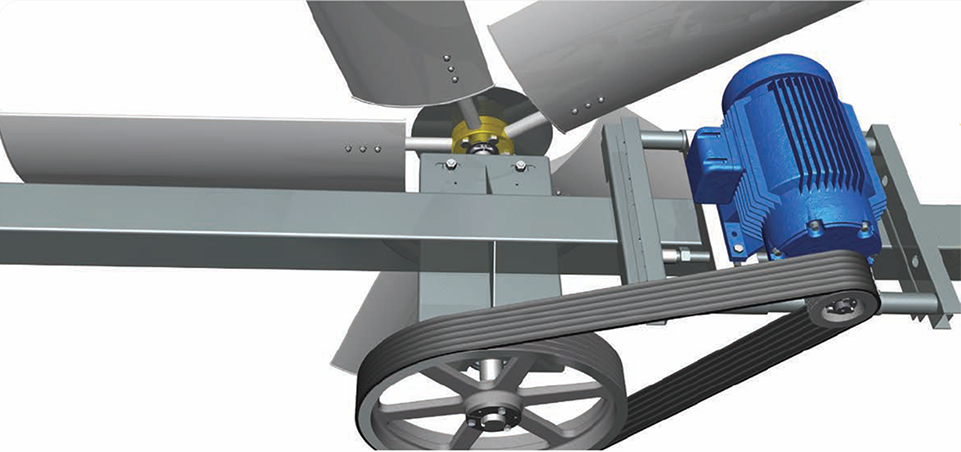

• BAC shafts are precision manufactured for vibration-free operation
• Epoxy-coated for corrosion resistance
• Journals are ground and polished for an accurate fit and easy bearing and drive component installation
• Long keyways for multiple drive combinations
• Grooved flats for positive, secure set-screw installation

• Standard fan is high-efficiency and low sound
•  Rugged, aluminum construction for corrosion resistance and extended life
•  For further reduced sound levels, Low Sound Fans, Whisper Quiet Fans, and sound attenuation are available
•  Factory balanced for easy installation and vibration-free operation
•  Maintain thermal performance as originally certified by CTI
•  Most fan kits include bushing and special length bolts

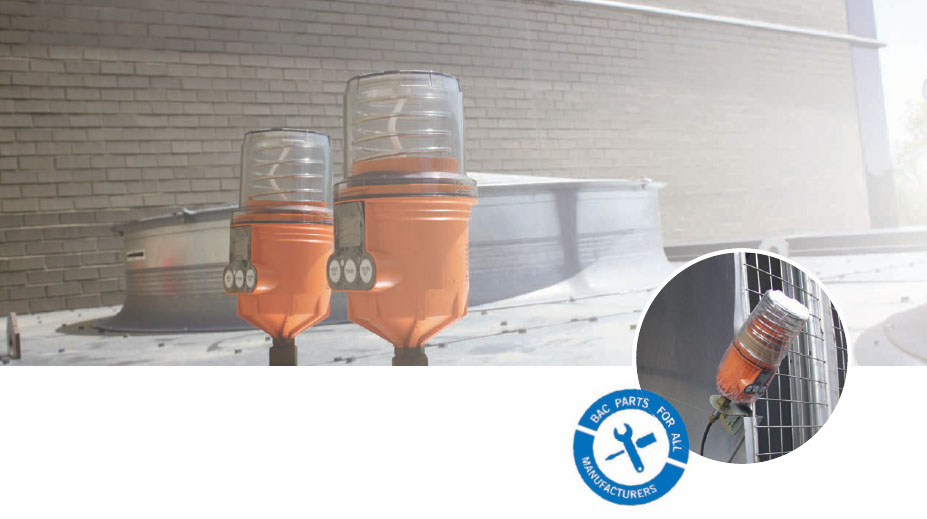

• Compatible with all BAC bearings and other non BAC bearings
• Lithium batteries are standard
• Positive displacement pump allows installations up to 6 m away from bearings when using single and multiple greaser kits
• Variable output and user-settable based on number of bearings, size and type of service
• Significant labor savings through less maintenance
• Multi-Point Automatic Bearing Greasers are now available in 250cc and 500cc
• Replacement grease packs and batteries are available from stock

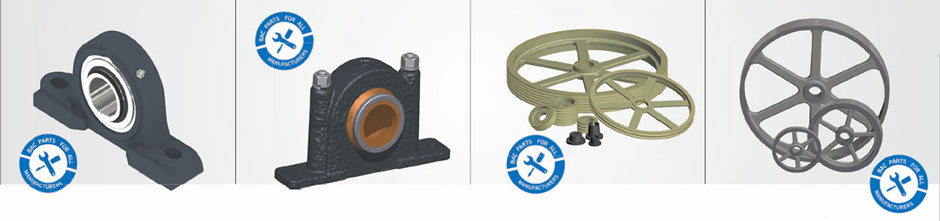

• Rated with a minimum L10 of 80,000 or more operating hours
• Industrial grade pillow block castings for extended life
• Exclusive BAC slinger/locking collar keeps water off the bearing seals
• Double-lip seal to keep moisture from contaminating the grease
• Complete installation kit includes all hardware, shims, and instructions

• Rated for an average life of 200,000 operating hours
• Pre-packed with water resistant grease for
• easy maintenance
• Split sleeve design bearings are available for easy replacement

• Minimum 2.0 service factor
• Fine-grain, high-strength cast iron
• Factory balanced for smooth operation
• Bushing design minimizes fretting corrosion on the shaft, which greatly eases removal when required

• Designed for use with all induced draft cooling towers
• Corrosion resistant aluminum alloy for operation in the moist cooling tower environment
• Less corrosion means less wear on sheave grooves and extended belt life
• Available for both driver and driven shafts

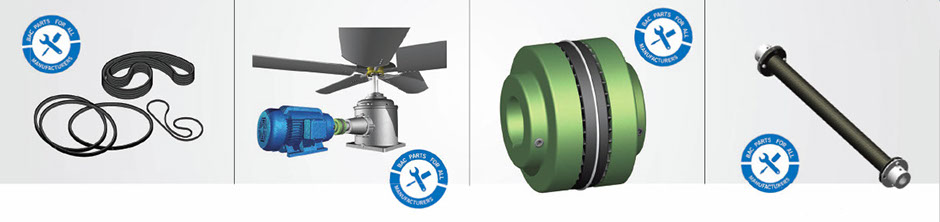

• Engineered for evaporative cooling operations
• Rated for 150% of unit horsepower
• Neoprene, backed with reinforced polyester, specifically designed for extended life

• Meet AGMA and CTI standards to ensure reliability
• Constructed of high-strength cast iron for
• low sound, vibration-free operation
• Gear drives are available for both BAC and other manufacturers’ equipment (exact dimensional fit, no modification required)

• No need for maintenance or lubrication
• Installation is quick and easy, and no special tools are needed
• Couplings absorb all types of misalignment caused by shock or vibration
• Not affected by dirt or moisture

• Composite shaft ships with 316 SST gear and motor couplings and hardware
• Made from high-strength composite material that allows for higher misalignment tolerance
• Corrosion resistant
• Lightweight, which reduces vibration and extends the life of the shaft

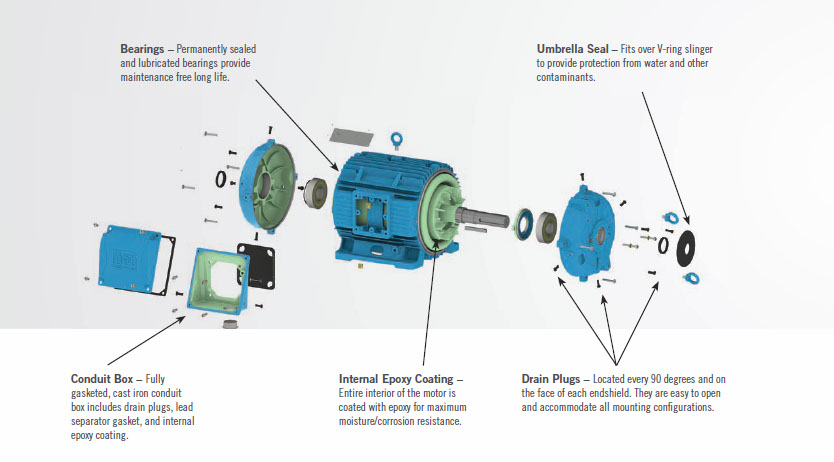

• Motors are engineered specifically for the rigors of cooling tower applications
• Made of high-grade FC-200 cast iron for maximum cooling and includes additional grounding plug
• Permanently sealed bearings never require lubrication and eliminate water contamination to the
• bearing grease
• BAC Premium Efficiency Cooling Tower Duty Motors are covered by a 5-year warranty
• IP55 rating for greater protection from water and particulate contaminants

BAC CAUTION TIP:

What does IP mean? IP is an ingress protection rating that states the level of protection from solids and liquids for your motor.

The higher the number after the IP identifier, the higher the protection from potential water damage. If your motor is lower

than an IP55 rating, you are purchasing a motor that was not properly protected from water seeping into the motor and your

motor may prematurely fail in evaporative cooling equipment applications.

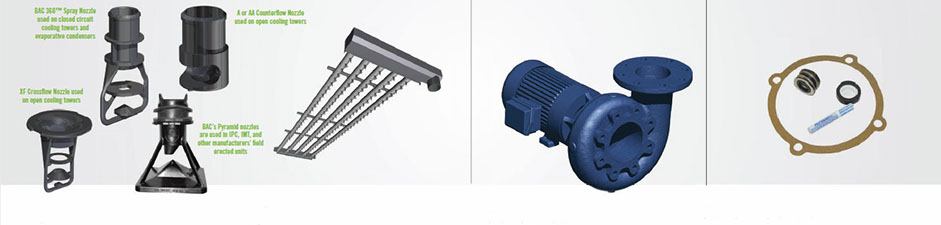

• Nozzles are grommeted for easy inspection and removal
• XF nozzles are gravity flow and can easily be inspected and
• replaced while unit is in operation
• Patented design guarantees optimum thermal performance
•  Large orifice means non-clogging performance
• Multiple sizes are available to accommodate all system flow rates

• Constructed of corrosion resistant PVC
• Grommeted construction allows spray branches and nozzles to be easily removed

• Cast iron, bronze-fitted construction with mechanical seal
• Impeller and trims have been selected for difficult high-flow, low-head requirements
• Supplied with vented seal housing to prevent air binding
• Mechanical seal is constructed with a carbon rotating element and a ceramic stationary element with stainless steel hardware for a long, leak-free life

• Replacement TEFC pump motors are designed for outdoor application
• Complete seal kits available from stock
• Shaft sleeves are available for pumps 1.1 Kw and larger

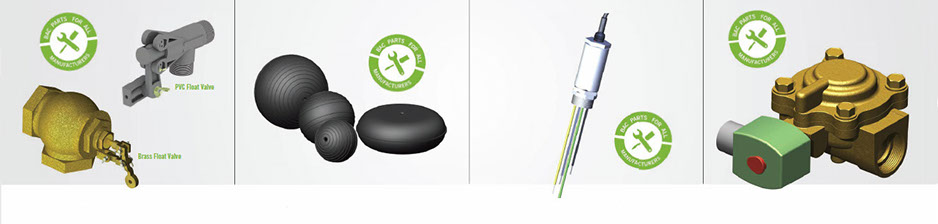

• Rubber seal disc assures a positive shut-off to prevent water waste
• Reliable stainless steel linkage in all kits

• Heavy-duty polypropylene construction resists cracking
• Foam-filled for structural rigidity and additional buoyancy
• Available in many sizes and configurations to ensure positive shutoff

• Universal mounting system fits any tower
• Completely sealed and waterproof
• Located inside the tower so no heat tracing is required
• 6 second time delay prevents short-cycling
• Plastic sheath on probes and stilling chamber prevents false-cycling
• Equipped with trouble shooting LED to diagnose water and probe conditions

• Forged brass body for durability and high-pressure applications
• Watertight electrical enclosure for outdoor use
• Slow-closing feature minimizes water-hammer on shut-off
• Valves are sized for a water pressure between 105 and 350 KPa at the valve inlet

• Single point inlet provides automatic flow-balancing to both hot water basins

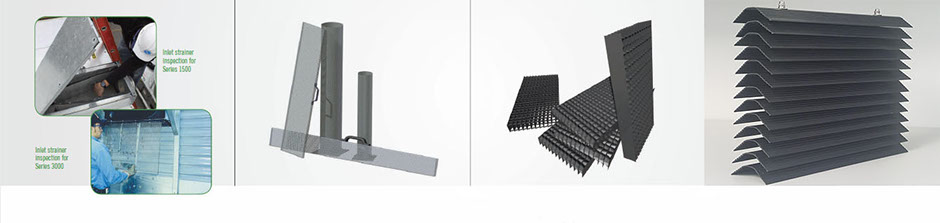

• Inlet strainer protects water distribution nozzles from debris, eliminating the need for a separate system strainer
• Large free-area inlet strainer minimizes pumping head
• Inlet strainer is easy to remove and clean

• 5 mm strainer perforations help keep the system clean
• Strainer perforations are spaced to provide maximum strainer free area for low pump suction losses
• Anti-cavitation design prevents air from reaching the system pump

• Wide spaced louvers reduce the potential for scale build-up and damaging ice formations at the air/water interface by providing an easy visual inspection from the outside of the unit into the fill
• Standard air intake louvers are constructed of corrosion and UV-resistant fiberglass reinforced polyester (FRP)
• Galvanized and stainless steel are available

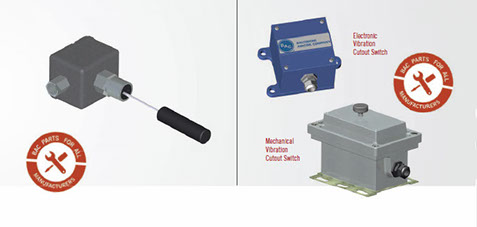

• Single-pole, double throw, liquid level float switch
• Designed to maintain a liquid level in the cold water basin
• When liquid level rises above or falls below a certain point, the switch will close one circuit and open a second

• Protect your tower from damage resulting from excessive vibration
• Mechanical or electronic switches are available with multiple options for alarms and reset
• Electronic switches are compatible with building management systems

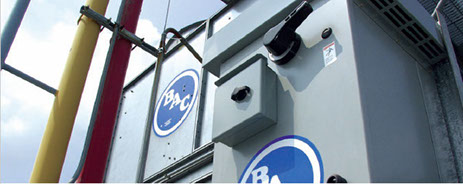

• Enclosed controls
• Variable frequency drives (VFD)
• Safety disconnect switches
• Combined Drive Enclosure

• Water and energy savings
• NEMA-rated enclosures for indoor/outdoor applications
• Industrial grade components
• UL listed and CSA/CUL certified
• Single-source solution
• Easy installation

Save operating costs and energy with BAC Equipment Controls!

All equipment controls are custom-engineered to operate your new or existing evaporative cooling equipment.

• Engineered for maximum performance and corrosion resistance
• Complete kits available
• Helps conserve water

• Outstanding thermal performance will meet or exceed the performance of any OEM fill
• Fits most crossflow towers
• Quick and easy field installation saves labor
• Nested shipment requires smallest fill staging area and low shipping costs
• Model-specific kits contain everything needed for an efficient installation, including detailed instructions, supports, hardware, and fill

• High-efficiency airfoil fans are specifically designed to withstand the rigors of cooling tower applications
• Efficient design yields higher airflow and pressure capability while requiring less horsepower input
• Blades are hollow and light in weight, but exceptionally tough and fatigue resistant
• For reduced sound levels, Low Sound Fans, Whisper Quiet Fans, and sound attenuation are available
•  Factory balanced for easy installation and vibration-free operation
• Gear speed reducers in single reduction, spiral bevel, and double reduction, spiral/helical designs

• Industrial grade construction
• Standard patented serpentine coils are HDGAF
• Materials of construction provide compatibility with virtually any refrigeration, air conditioning, or process fluid system
• Construction options include:

– ASME “U” construction when conditions require pressure vessel compliance

– Extended surface finned coils for plume reduction and water savings

– Cleanable tubes or cleanable headers for dirty fluid application

– Stainless Steel coils

• Available for the Series 3000, Series 1500, PT2, PF2, PC2, FXV and CXVB units
• Prevent algae growth in the cold water basin
• › Eliminate water splash out
• Prevent debris from entering the cold water basin
• Inlet shield is easy to remove and clean
• Separate from the fill and removable to allow easy access for inspection of the air/water interface at the air inlet side of the equipment
• Also available on the FXV and CXVB for installation above the spray distribution system
